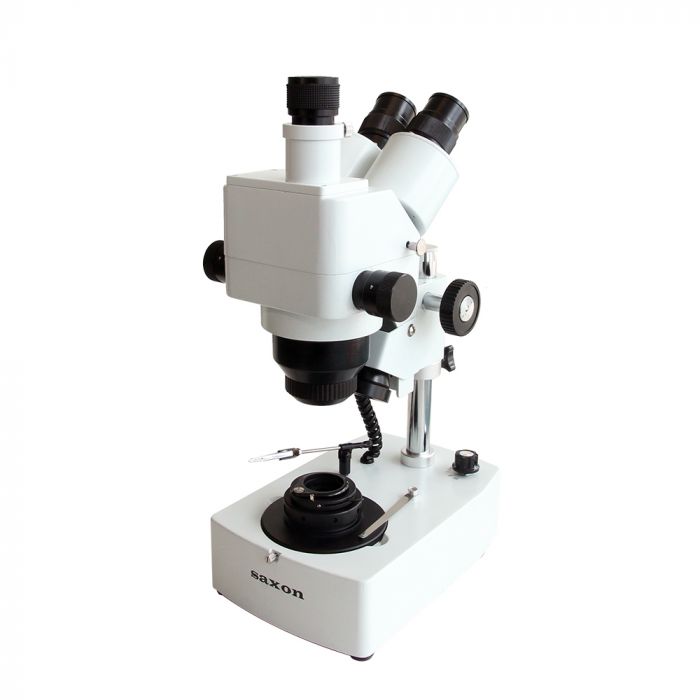

Saxon GSM 10x-160x Gemological Microscope
The Saxon GSM Gemological Microscope features 10x-160x magnification, darkfield and lightfield condensers, and LED illumination, making it perfect for detailed gemstone analysis and evaluating authenticity with precision.
Shipping Calculator
The saxon GSM Gemological 10x-160x Microscope is a specialised stereo microscope for studying gems and stones. The microscope features both top and bottom LED illuminations for uniform brightness and adjustable lighting conditions. Its stage includes darkfield and lightfield options, enabling you to observe gemstones under varying contrasts for precise analysis. This microscope also features a high-power variable zoom up to 160x magnification for the study of miniscule stone samples.
With an 85mm working distance and a coarse focus mechanism, the Saxon GSM ensures comfortable and efficient operation. The sturdy pillar stand and high-quality construction ensure durability and stability for both field and lab use. The included black/white contrast plate and frosted glass stage enhance sample visibility.
Full Specifications
| Type | Stereo / Dissecting |
| Head | Trinocular 360° Rotatable, 45° Incline |
| Eyepieces Magnification | 2 x WF10x & 2x WF20x |
| Eyepiece Diameter | Not provided |
| Nosepiece | Rotational |
| Objective Type | Zoom |
| Objective Magnification | 1x - 4x |
| Field of View | 5.5mm - 23mm |
| Working Distance | 85mm |
| Focus Type | Coarse Focus (Rack & Pinion) |
| Focus Travel Per Rotation | Not provided |
| Magnification | 10x - 40x |
| Illumination | LED, Lower & Upper |
| Power Source | 4.2v 1500mA AC Power |
| Stage | Black/White Contrast Plate, Frosted Glass |
| Condenser | Darkfield and Light field |
| Stage Diaphragm | N/A |
| Weight | ± 4.25 kg |
| Warranty | 3 Years Limited Warranty |
Whether you're identifying inclusions, analysing gemstones, or inspecting jewelry, this microscope offers professional-grade performance with user-friendly functionality.
Recommended Accessories
 |
saxon Ores Sample Get started with geology with a 12-piece set of different ores! |
 |
 |
saxon Resin Preserved Insect - Scorpion Specimen A preserved scorpion sample, inbedded in resin, ready for inspection. |
|
 |
saxon Resin Preserved Insect - Scorpion Specimen A preserved centipede sample, inbedded in resin, ready for inspection. |
|
 |
saxon 10 Megapixel Digital Microscope Camera - USB and HDMI Enables you to live view, take photos and videos through your microscope onto an external monitor, PC or Mac. |
|
|
saxon Ores Sample Get started with geology with a 12-piece set of different ores! |
 |
|
saxon Resin Preserved Insect - Scorpion Specimen A preserved scorpion sample, inbedded in resin, ready for inspection. |
|
|
saxon Resin Preserved Insect - Scorpion Specimen A preserved centipede sample, inbedded in resin, ready for inspection. |
|
|
saxon 10 Megapixel Digital Microscope Camera - USB and HDMI Enables you to live view, take photos and videos through your microscope onto an external monitor, PC or Mac. |
|
What's in the Box
- 1x saxon GSM Gemological 10x-160x Microscope
- 1x WF10x Eyepiece (pair)
- 1x WF20x Eyepiece (pair)
- 1x Rubber Eyecups (pair)
- 1x Microscope Spacer Ring
- 1x Black/White Contrast Plate
- 1x Glass Stage Plate
- 1x Dark Field Condenser
- 1x AC Adapter
- 1x Dust Cover
About saxon - High Quality Optics
The Saxon brand commits to quality and research. The company develops a range of binoculars, telescopes, microscopes and accessories with the understanding of its user’s priorities and needs. Saxon has built each product around the knowledge that everyone’s viewing requirements are different, proven through each precise and well thought out product line. Browse a range of Saxon optical products and you'll find that every glass has been designed to help every viewer see only the best in every situation.
Product Code: 314220
| Microscope Type | Stereo / Dissecting |
|---|---|
| Magnification Range | 160x |
| Eyepieces | WF10x |
| Head Type | Trinocular |
| Objectives | 4x |
| Focuser Type | Coarse Focus |
| Illumination | LED - Top & Bottom |
| Condenser Type | Darkfield & Brightfield |
| Stage Type | Black/White Contraste Plate |
| Power Supply Requirements | 4.2V 1500mA AC |
| Warranty Information | 3 Years Limited Warranty |
| Image | Item | Qty |
 |
saxon GSM Gemological Microscope 10x-160x | 1 |
 |
saxon 2x barlow lens | 1 |
 |
saxon WF10x, 20x Eyepiece | 2 |
 |
saxon rubber eyecups | 2 |
 |
saxon microscope spacer | 1 |
 |
Black/White Contrast Plate | 1 |
 |
saxon Glass Stage Plate | 1 |
 |
saxon Dark Field | 1 |
 |
saxon Adapter | 1 |
 |
saxon Dust Cover | 1 |
